How to Set Up Dual Monitors for Optimal Productivity and Comfort

Setting up a second monitor is about more than just plugging in a cable; it’s about extending your desktop to create a digital workspace that supports your health and enhances your workflow. This simple upgrade can fundamentally improve how you work, clearing bottlenecks you didn’t even know you had. A well-designed dual monitor setup can boost your productivity and significantly reduce physical strain.

Why a Dual Monitor Setup Is a Game Changer for Your Workstation

If you’ve ever found yourself juggling a dozen different windows on one screen, you understand the frustration. The constant switching between apps breaks your concentration and kills momentum. This is exactly where adding a second monitor makes a real, tangible difference.

Doubling your screen real estate creates a more seamless environment. You can have your research open on one screen while actively writing on the other. This parallel workflow means no more hiding and revealing windows, letting you stay focused on the task at hand.

Unlocking Greater Productivity and Focus

The benefits are backed by research. Studies have found that people using dual monitors can be significantly more efficient on tasks that involve referencing different information sources. This boost comes from a reduction in window switching, which keeps your workflow smooth and continuous. For a deeper dive, check out the full research on productivity impacts.

This setup is a massive advantage for many professionals:

• Developers can write code on one display and see the live preview update instantly on the other.
• Designers can place tool palettes and layers on a secondary screen, dedicating their main monitor to the canvas.
• Writers and researchers can keep source materials visible next to their working document for easy fact-checking.

A dual monitor setup also brings a psychological benefit. An organized digital space reduces mental clutter and fatigue, helping you stay focused for longer. You’re creating dedicated zones for different parts of your job.

Creating an Ergonomic and Organized Workspace

An expanded display encourages a more organized desk—both physically and digitally. With more screen space, you can arrange apps logically for your workflow, assigning certain tasks to each monitor. This builds muscle memory, making your interactions with your computer feel faster and more intuitive.

Ultimately, learning how to set up dual monitors isn’t just a technical exercise. It’s an investment in a more productive and comfortable way to work. It’s a small change that pays off by removing daily frustrations and letting you fully engage with what you do best.

Your Pre-Setup Checklist for Dual Monitors

Before you start connecting cables, a few minutes of preparation will prevent future frustration. This quick check ensures your computer, monitors, and cables are all compatible. Think of it as gathering your ingredients before you start cooking—it makes the whole process smoother.

First, identify your computer’s video ports. Whether you’re using a desktop or a laptop, you need to know what outputs you have. Look for connectors like HDMI, DisplayPort, or USB-C (specifically, one that supports Thunderbolt or DisplayPort Alternate Mode).

Your monitors will have a similar lineup of input ports. The goal is simple: match an output from your computer to an input on your monitor.

Identifying Your Connection Points

Not all ports are created equal. Each type has its own strengths, which matters if you’re aiming for high resolutions or fast refresh rates.

Take a quick inventory of what your gear offers. A modern gaming PC might have multiple DisplayPort outputs, while a sleek laptop may rely on a single USB-C port. If your ports don’t match—say, your laptop has USB-C but your older monitor only takes HDMI—adapters and specialized cables can bridge the gap.

A simple USB-C to HDMI adapter is often the cleanest solution. It bridges that technology gap without forcing you to buy a new display.

Checking Your Graphics Card’s Capability

Just because your computer has multiple video ports doesn’t automatically mean it can power two external displays effectively. The real workhorse behind your setup is the Graphics Processing Unit (GPU), also known as your graphics card.

For everyday tasks like browsing and word processing, most modern computers can handle two standard monitors without issue. However, if your plan involves two high-resolution (4K) or high-refresh-rate (144Hz) monitors for creative work or gaming, confirm your GPU is up to the challenge. A quick online search for your computer or graphics card model will reveal its specifications, including how many displays it officially supports.

Choosing the Right Connection for Your Monitors

Understanding the different port types helps you get the best performance from your screens. This table breaks down the common options.

Choosing the Right Connection for Your Monitors

A quick comparison of common video ports to help you select the best cable for performance, resolution, and refresh rate in your dual monitor setup.

Once you have your cables and any necessary adapters, you’re nearly ready. This initial check prevents realizing you have the wrong cable midway through setup.

It also ensures you’re using the best connection available for a sharp picture and smooth performance. To physically support your new setup and reclaim desk space, you might look into the best dual monitor stands to maximize desk space for a cleaner, more ergonomic layout.

Positioning Your Monitors for Comfort and Health

Once the technology is sorted, the real work begins: building a workspace that’s both productive and healthy. How you physically arrange your screens can be the difference between a seamless workflow and a setup that causes neck pain. Getting your dual monitor ergonomics right is essential for your long-term well-being.

The goal is to create an arrangement that supports your body’s natural posture. You shouldn’t have to twist, crane your neck, or lean in. This comes down to a few key adjustments: monitor height, distance, and angle, guided by principles from occupational health experts.

Finding the Right Monitor Height

Getting the monitor height right is critical. When screens are positioned improperly, they force your neck into unnatural angles, leading to discomfort over time.

The rule here is simple: the top of your screen should be at or just below your natural eye level when you’re sitting up straight. This adjustment encourages a neutral neck position, with your head balanced comfortably over your shoulders. If you wear bifocals, position your monitors slightly lower to avoid tilting your head back to see clearly.

Determining the Ideal Viewing Distance

Just as important as height is the distance between you and your screens. If they’re too close, you risk eye strain. Too far, and you’ll lean forward, compromising your posture.

A great rule of thumb is to place your monitors about an arm’s length away. For most people, that lands between 20 to 28 inches (50 to 70 centimeters). This sweet spot lets you see the entire screen without excessive eye or neck movement. To dial this in, check our detailed guide to find your ideal monitor distance for eye comfort.

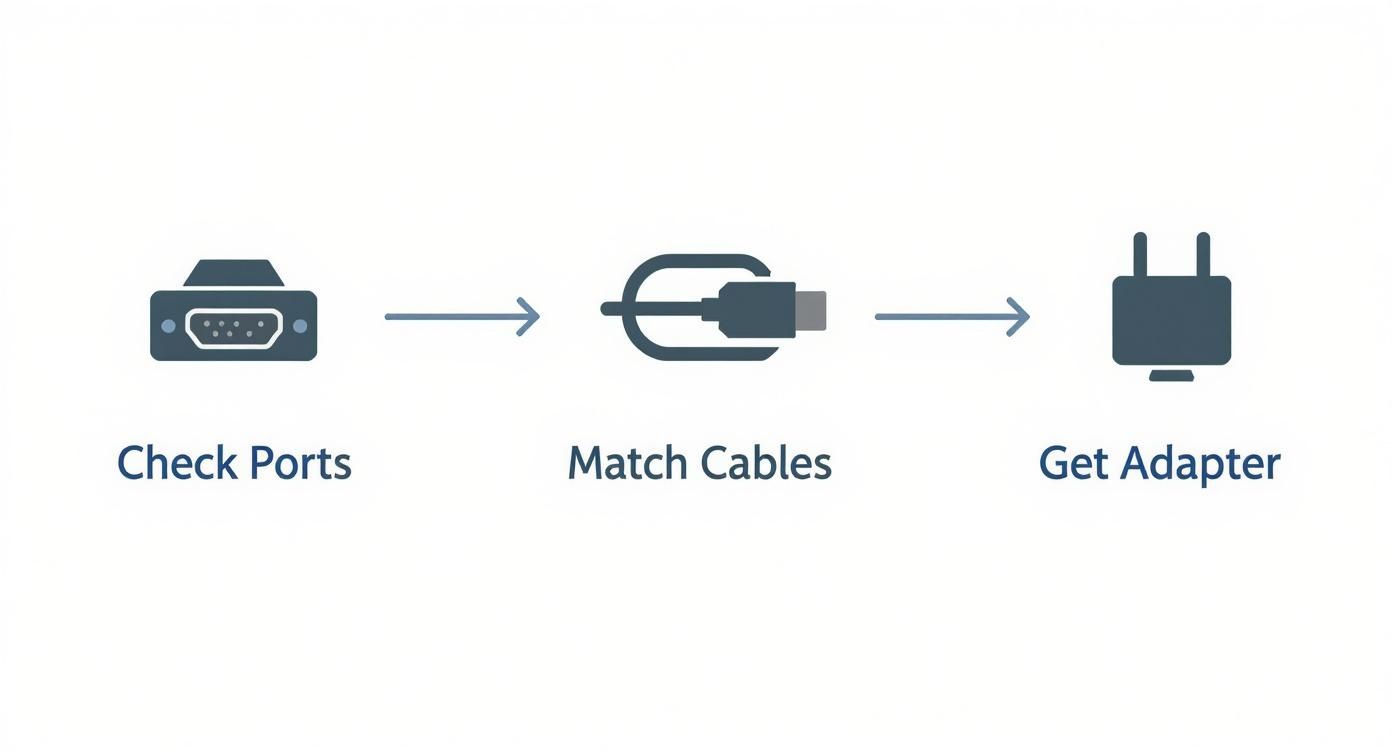

Before we get too deep into physical placement, this quick visual shows the connection steps that form the foundation for everything else.

Getting these hardware connections right from the start means you won’t have to undo all your hard ergonomic work later.

Arranging Your Monitors Based on Workflow

How you arrange your two monitors should be dictated by how you work. There’s no single “best” layout; the right choice is the one that supports your daily tasks.

Here are a few common and effective setups:

• Primary Monitor Centered: If you spend most of your time (70% or more) on one screen, put that monitor directly in front of you. The second one goes off to the side, angled in slightly. This is perfect for writers or developers.
• Monitors Side-by-Side: For those who split their time evenly (a 50/50 split), place both monitors next to each other so the inner bezels meet in your line of sight. This creates a panoramic view ideal for comparing documents.
• One Horizontal, One Vertical: This is a favorite for coders and writers. A vertical monitor is fantastic for viewing long feeds of information, while your primary horizontal screen handles the main task.

No matter which configuration you choose, try to minimize the gap between your monitors. A smaller gap creates a more seamless visual experience.

Fine-Tuning Angles and Tilt for a Unified View

The final piece of the puzzle is adjusting the angle and tilt. These small tweaks make a big difference in minimizing neck strain and reducing distracting glare.

Your monitors should be angled slightly inward, creating a gentle curve around your seating position. This helps ensure that the distance from your eyes to any point on either screen stays roughly the same, reducing eye fatigue.

Also, try adding a slight upward tilt (10 to 20 degrees) to your screens. This can help you maintain a comfortable viewing line and is especially good at fighting glare from overhead lights. Your goal is to create a single, unified field of view. By paying attention to these ergonomic details, you’re building a healthier, more sustainable place to work.

Configuring Your Displays in Windows and macOS

With your monitors physically connected and positioned, the last piece is telling your computer how to use them. This is where you move from two separate screens to one seamless, extended digital workspace. Thankfully, both Windows and macOS have made this process incredibly straightforward.

The goal is to create an extended desktop. This is different from mirroring, where both screens show the same thing. Extending your desktop lets you drag windows from one monitor to the other as if they were a single giant screen. This is what unlocks the real productivity boost.

Setting Up Dual Monitors in Windows

Windows is quite good at recognizing a second monitor. Once connected and powered on, your PC should automatically detect it. The fastest way to configure it is with a keyboard shortcut.

Press the Windows key + P. This opens the “Project” menu with four options:

• PC screen only: Uses just your main display.
• Duplicate: Mirrors the same image on both screens.
• Extend: This is the one you want. It combines both screens into one large desktop.
• Second screen only: Turns off your primary display, using only the secondary one.

Select Extend, and you’re ready to customize.

If your second monitor doesn’t activate, don’t worry. After checking that your cables are secure, right-click anywhere on your desktop and choose Display settings.

In this menu, you’ll see a diagram with boxes labeled “1” and “2,” representing your monitors. If you only see one box, scroll down to the “Multiple displays” section and click the Detect button.

Customizing Your Windows Display Layout

Once Windows sees both monitors, you must tell it how they’re arranged on your desk. This is a critical step for your mouse cursor to move logically between screens.

In the Display settings diagram, click and drag the numbered boxes to match their real-world positions. If your second monitor is on the left, drag its box to the left. Click Apply to save the layout.

Next, you need to designate your main display. This is the screen where your Start menu and new app windows will appear by default.

1. In the diagram, click on the monitor you want as your primary one.
2. Scroll down to the “Multiple displays” settings.
3. Check the box that says “Make this my main display.”

While here, you can also tweak the scaling and resolution for each monitor. This is helpful if you’re mixing a 4K monitor with a 1080p one. Bumping up the scaling to 125% or 150% on the 4K screen can make text and icons readable without affecting the other display.

Configuring Displays in macOS

Setting up a second monitor on a Mac is just as easy. By default, macOS will set new displays to extended desktop mode the moment you plug them in.

To fine-tune the arrangement, open System Settings (or System Preferences on older versions) and go to the Displays section. You’ll find a visual layout of your connected monitors.

Just like in Windows, you can click and drag the blue boxes representing your screens to match their physical layout. Forgetting this step is a common mistake that leads to a frustrating user experience.

To choose your primary display, click and drag the thin white menu bar from one monitor’s icon to the other. Whichever screen has that white bar becomes your main display, hosting your dock and menu bar.

The demand for multi-screen productivity is growing. The dual-screen laptops market alone was valued at USD 2.9 billion and is forecasted to grow, according to Future Market Insights. This shows how essential multi-display setups have become for modern work.

Whether you’re on a PC or a Mac, spending a few minutes in the display settings is the final, crucial step to transform two pieces of hardware into a single, powerful workspace.

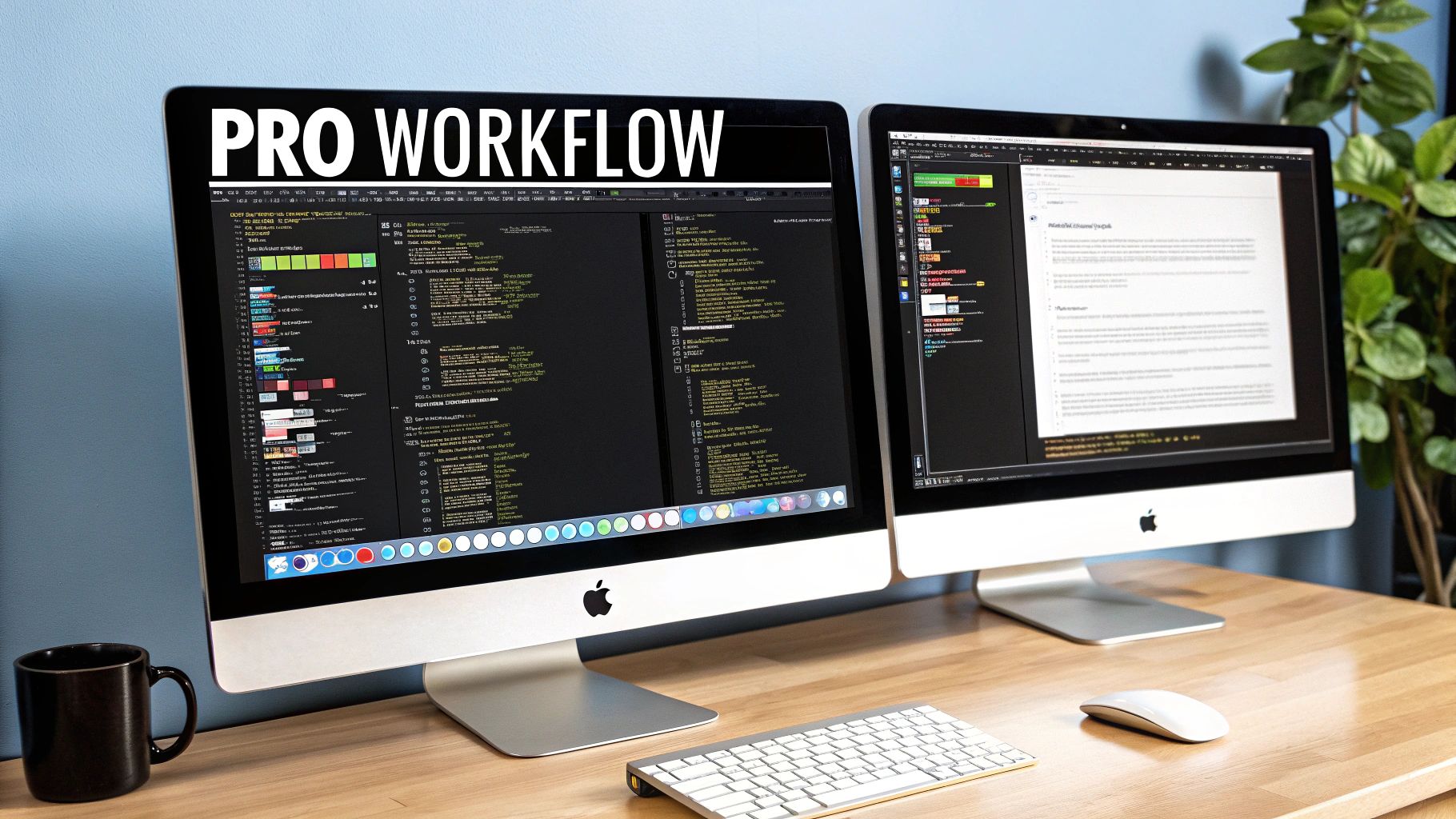

Pro Tips for a Flawless Multi-Monitor Workflow

Getting your second monitor working is just the beginning. The real productivity boost comes from mastering your expanded workspace. It’s time to customize your setup to match how you actually work and transform two screens into a fluid command center.

One of the most powerful adjustments is changing a monitor’s orientation.

Embrace the Vertical Monitor

If you work with long documents, code, or social media feeds, a vertical monitor can be a game-changer. By rotating one of your screens 90 degrees, you create a tall, narrow display that dramatically reduces scrolling.

• For Coders: See more of your code at a glance, making it faster to navigate complex files.
• For Writers: View an entire page of a document as you write, making it easier to manage structure and flow.
• For Designers: Keep toolbars or reference images docked on the vertical screen, freeing up your primary display.

Most modern monitors and operating systems support this pivot function. Physically rotate the screen, then go into your computer’s display settings to adjust the orientation.

Manage Mismatched Monitors

Most of us don’t have two perfectly matched monitors. It’s common to pair a new 4K display with an older 1080p one. This can create jarring scaling issues where windows look massive on one screen and tiny on the other.

Both Windows and macOS have per-monitor scaling adjustments. In your display settings, you can set a custom scaling percentage for each screen individually. For instance, set your 4K monitor to 150% scaling while leaving the 1080p monitor at 100%. This simple tweak ensures a consistent, readable experience.

The impulse to use multiple screens is a natural extension of how we interact with technology. The “second-screen phenomenon” shows how deeply multi-device use has shaped our behavior. As noted in research on second-screen strategy trends on arena.im, many people already use a second device while watching TV, a behavior that translates directly to the desktop.

Conquer the Bezels

The plastic border around your monitor—the bezel—can create a visual interruption. To make this gap less distracting, angle your monitors slightly inward to form a gentle curve.

This not only makes the division less jarring but also aligns with better ergonomic practices by keeping the viewing distance more consistent as your eyes move across both screens. A clean physical setup enhances this seamless feeling. For more on that, check out these quick desk decluttering tips for better productivity.

Supercharge Your Workflow with Window Management Tools

The final step in mastering a dual monitor setup is using window management software. While you can manually drag and resize windows, dedicated apps automate the process, saving you countless clicks.

These tools let you create custom layouts and use keyboard shortcuts to instantly “snap” windows into predefined zones. Imagine pressing a key to arrange your browser on the left half of one screen and your editor on the right half of the other. This level of organization keeps your workspace tidy and your mind focused.

Common Mistakes and How to Fix Them

Even with the best intentions, it’s easy to make small mistakes that can undermine your setup’s benefits. Here are some common errors and their simple fixes.

• Mistake: Ignoring Ergonomics. Placing monitors too high, too low, or too far away.
  • Fix: Follow the arm’s length rule for distance and position the top of the screen at or just below eye level. Adjust your chair height first, then your monitors.
• Mistake: Mismatched Virtual and Physical Layouts. Arranging monitors in software differently from their physical placement on your desk.
  • Fix: Open your display settings and drag the monitor icons to perfectly mirror their real-world positions. This ensures your mouse moves logically between screens.
• Mistake: Using “Duplicate” Instead of “Extend”. Mirroring your screens, which offers no extra desktop space.
  • Fix: Press Windows Key + P (on Windows) or check your Display Settings (on Mac) and ensure your monitors are set to “Extend.”
• Mistake: Neglecting Glare and Lighting. Placing monitors where they catch reflections from windows or overhead lights.
  • Fix: Position your desk perpendicular to windows. Use blinds to control natural light and adjust monitor tilt to minimize reflections from lamps. Aim for an ambient light level of 300–500 lux.

If you experience persistent discomfort or pain despite these adjustments, it is always best to consult with a medical professional.

Printable Dual Monitor Setup Checklist

Use this checklist to ensure you’ve covered all the essential steps for a healthy and productive setup.

• Hardware Check Complete: All ports, cables, and adapters are identified and compatible.
• Monitors Securely Connected: Cables are firmly plugged in, and both monitors are powered on.
• Ergonomic Height Set: Top of screens are at or just below eye level.
• Ergonomic Distance Set: Screens are an arm’s length away (approx. 20-28 in / 50-70 cm).
• Optimal Angling: Monitors are angled slightly inward to form a gentle curve.
• Display Mode is “Extend”: Operating system is configured to extend the desktop, not duplicate it.
• Primary Monitor Designated: Your main work screen is set as the primary display.
• Virtual Layout Matches Physical Desk: Monitor arrangement in settings mirrors their real-world placement.
• Resolution & Scaling Optimized: Each monitor is set to its native resolution with comfortable text scaling.
• Lighting & Glare Controlled: Workspace lighting is adequate, and screen glare is minimized.
• Desk is Decluttered: The physical workspace is organized and free of distractions.
• Micro-Breaks Planned: Remember to follow the 20-20-20 rule—every 20 minutes, look at something 20 feet away for 20 seconds.

Key Takeaways for Your Dual Monitor Setup

Setting up dual monitors correctly is an investment in your productivity and long-term health.

• Ergonomics First: Prioritize proper monitor height, distance, and angle to prevent strain. Your comfort is paramount.
• Extend, Don’t Duplicate: Ensure your operating system is set to “Extend” to gain the full benefit of extra screen real estate.
• Customize for Your Workflow: Arrange your monitors physically and digitally to match how you work, whether that means a vertical screen for coding or a side-by-side setup for data comparison.
• Manage the Details: Pay attention to lighting, glare, and cable management to create a focused and pleasant workspace.

By following these guidelines, you can build a powerful, comfortable, and efficient command center for all your professional and personal projects.

References

• Cornell University Ergonomics Web. (n.d.). Computer Workstation Ergnomics.
• Canadian Centre for Occupational Health and Safety (CCOHS). (n.d.). Ergonomics.
• Mayo Clinic. (n.d.). Office ergonomics: Your how-to guide.
